i. Abstract

A GeoPackage [geopackage] is a platform-independent SQLite [sqlite] database file that contains GeoPackage data and metadata tables. GeoPackages, as described by the GeoPackage Encoding Standard [GPKG1_2] are designed to be extensible, including support for additional data types. This document defines the Related Tables Extension (RTE) for the GeoPackage Encoding Standard.

The RTE defines the rules and requirements for creating relationships in a GeoPackage data store between geospatial data tables and other tables that contain or reference related content such as attributes or media. Geospatial data tables (such as features or tiles tables) contain location information and/or geometries. There are many examples of where the RTE can be used including relating parcel (land lot) features to pictures of that parcel or linking census boundaries to the related demographic census data.

ii. Keywords

The following are keywords to be used by search engines and document catalogues.

ogcdoc, OGC document, GeoPackage, extension, related tables, multimedia

iii. Preface

The GeoPackage Related Tables Extension (RTE) defines the rules and requirements for creating relationships in a GeoPackage [geopackage] data store between geospatial or attributes data tables and other tables that contain or reference related content such as attributes or media. Geospatial data tables (such as features or tiles tables) contain location information and/or geometries. Conceptually, this extension is similar to the OGC Table Joining Service Interface Standard [OGC-TJS-IS].

One use case for this extension is to associate features with related multimedia content such as:

  • photographs.

  • audio or video files.

  • PDFs.

There are many examples of where the RTE can be used including relating parcel (land lot) features to pictures of that parcel or linking census boundaries to the related demographic census data. To support this capability, an ancillary data table (gpkgext_relations) is used in conjunction with user-defined mapping tables.

This extension, like all GeoPackage extensions, is intended to be transparent and to not interfere with GPKG compliant, but non-supporting, software packages. The OGC GeoPackage (GPKG) Related Tables Extension Interoperability Experiment (GPKG-RTE IE) [GPKG-RTE_IE] verified that the extension is correctly designed to meet the design goals and to be transparent in this manner. The goal of the IE was achieved by building GeoPackages containing embedded multimedia content and sharing those GeoPackages with other software products. This IE produced an OGC Engineering Report [GPKG-RTE_IE_ER] that discusses whether the extension is fit for use and adoption by the OGC.

The following information is provided in compliance with the GeoPackage Extension template as defined in Annex E: GeoPackage Extension Template of the GeoPackage Standard. These additional introductory clauses are not elements in the standard OGC document template.

  • Extension Author: GeoPackage SWG; author_name gpkg to be used upon adoption.

  • Extension Name or Template: related_tables; upon adoption the alias gpkg_related_tables MAY be used

  • Extension Type: This extension provides new requirements dependent on GeoPackage Clause 2.1 and Clause 2.4.

  • Applicability: This extension defines relationships between feature tables and tables that hold related content, including multimedia, simple attributes, and other features.

  • Scope: read-write

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. The Open Geospatial Consortium shall not be held responsible for identifying any or all such patent rights.

Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by any implementation of the standard set forth in this document, and to provide supporting documentation.

iv. Submitting organizations

The following organizations submitted this Document to the Open Geospatial Consortium (OGC):

  • Image Matters LLC

  • Compusult

  • Radiant Solutions

  • SOFWERX

v. Submitters

All questions regarding this submission should be directed to the editor or the submitters:

Name

Affiliation

Rob Cass

Compusult

Jeff Yutzler

Image Matters

Tracey Birch

SOFWERX

Jason MacDonald

Compusult

Ashley Antonides

Radiant Solutions

Brad Hards

 — 

1. Scope

A GeoPackage [geopackage] is a platform-independent SQLite [sqlite] database file that contains GeoPackage data and metadata tables. GeoPackage is designed to be extensible, including support for additional data types.

This document defines an extension that allows a GeoPackage to contain additional data that is related to geospatial (generally, but not exclusively, features) or attributes data. As an example, this can be used to establish a many-to-many relationship between features (e.g. points, lines, or areas) and multimedia files.

2. Conformance

This standard defines requirements for specialised attribute tables (containing information such as multimedia content to be stored in a GeoPackage, or simple attributes) and mapping tables to relate information in separate tables, along with metadata to describe those tables and the relationships between them.

Conformance with this standard shall be checked using all the relevant tests specified in Annex A (normative) of this document. The framework, concepts, and methodology for testing, and the criteria to be achieved to claim conformance are specified in the OGC Compliance Testing Policies and Procedures and the OGC Compliance Testing web site[1].

3. References

The following normative documents contain provisions that, through reference in this text, constitute provisions of this document. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply. For undated references, the latest edition of the normative document referred to applies.

4. Terms and Definitions

This document uses the terms defined in Sub-clause 5.3 of [OWS_COMMON], which is based on the ISO/IEC Directives, Part 2, Rules for the structure and drafting of International Standards. In particular, the word “shall” (not “must”) is the verb form used to indicate a requirement to be strictly followed to conform to this standard.

For the purposes of this document, the following additional terms and definitions apply.

4.1. attributes data

Non-spatial tabular data that is designed to be joined with geospatial data for analysis. In a GeoPackage, attributes data is stored in attributes tables as per http://www.geopackage.org/spec/#attributes.

4.2. base data

Data that is linked in some way to related data (in other words, the left side of the A→B relationship). In this extension, base data is stored in geospatial or attributes data tables.

4.3. cardinality

The property of a relationship between two entities, specifying whether it is one-to-one, one-to-many, many-to-one, or many-to-many.

4.4. geospatial data

Data containing location information and/or geometries. In a GeoPackage, geospatial data may be stored in features or tiles tables.

4.5. one-to-many

A type of cardinality in which an element of A may be linked to zero or more elements of B, but an element of B is linked to one and only one element of A.

4.6. many-to-many

A type of cardinality in which an element of A may be linked to zero or more elements of B and an element of B may be linked to zero or more elements of A.

4.7. many-to-one

A type of cardinality in which an element of A is linked to one and only one element of B, but an element of B may be linked to zero or more elements of A.

Data that is linked to in some way from base data (in other words, the right side of the A→B relationship). In this extension, related data is stored in a user-defined attributes table (of which user-defined media table is a special case) or feature table.

4.9. relationship

For the purposes of this extension, a link between two entities A and B. A refers to base data and B refers to related data.

4.10. user-defined attributes table

In this extension, a user-defined attributes table is a table that contains data that is related to existing geospatial data.

4.11. user-defined mapping table

In this extension, a user-defined mapping table is a join table that links geospatial data and related data.

4.12. user-defined media table

In this extension, a user-defined media table is a user-defined attributes table that is specifically designed to contain multimedia content (including, but not limited to, images, diagrams, formatted text, moving images or audio).

5. Conventions

This sections provides details and examples for any conventions used in the document. Examples of conventions are symbols, abbreviations, use of XML schema, or special notes regarding how to read the document.

5.1. Identifiers

The normative provisions in this specification are denoted by the URI prefix

All requirements and conformance tests that appear in this document are denoted by partial URIs which are relative to this base. For example, if the requirement identifier is shown as /req/table-defs/extensions-ger then the unique identifier for that requirement is http://www.opengis.net/spec/gpkg-rt/1.0/req/table-defs/extensions-ger.

6. Design (Informative)

6.1. Overview

The core of the Related Tables Extension is a mapping between existing table types defined by GPKG 1.2 - features, tiles and attributes. The mapping is defined by a new kind of table defined by the Related Tables Extension. The mapping table links related rows in those tables of those types by reference to their primary keys. For example, to link a row in Table A to a row in Table B, the mapping table includes a row that has two values - the primary key of the row from Table A, and the primary key of the row from Table B.

The mapping table allows many-to-many relationships. For example, to relate another row in Table B to the same row in Table A, the mapping table would simply include another row with the appropriate primary keys. See Figure 1.

RelatedTablesConcept
Figure 1. Related Tables concept

Mapping tables are unique to each pair of tables. The appropriate mapping table for each table pair (if any) is identified in a new table gpkgext_relations, which also specifies the name of the primary key column and the type of related data. This version of the Related Tables Extension supports three types of related data, which are separate conformance classes:

  • media

  • simple attributes

  • features

The relationships can be considered directional, in that they relate primary keys of two tables in terms of base (the "left" or "from" side of the mapping) and related (the "right" or "to" side of the mapping). Since the related tables are valid GPKG 1.2 table types (potentially with some additional constraints), they can form the base side of another mapping. This allows chaining (directed graph) of relationships as appropriate to represent the modelled data. See Figure 2.

The Related Tables Extension makes no constraints on the base table; it can be any table type supported by GPKG 1.2 - tiles, attributes or features. The related ("right" / "to") table is constrained by defined values of relation_name which is a TEXT value in the gpkgext_relations table. The constraining of relationships serves two purposes - it allows clients to provide appropriate rendering of content, and it communicates the intent of the relationship. Since the relationship is text, values other than those defined by the Related Tables Extension document can be used, however this will not be interoperable without some other coordination mechanism.

6.2. Requirements Classes

6.2.1. Media

The Media conformance class is used for related tables that provide multimedia content. The GPKG table type is attributes. This was the original intent of the Related Tables Interoperability Experiment, and remains an important use. For example, using a relation_name of media provides the ability to link a set of photographs, line diagrams, documents, videos and/or audio files to a specific location (typically a point or polygon feature; but the Related Tables Extension does not prohibit some other kind of feature, or a row in an attribute table, or a row in a tile table being used as the base side of the mapping to the media table). The minimum content of the user defined media table is a primary key, a BLOB containing the media content (conceptually a byte array in the GeoPackage), and the IANA Media Type type for the media content (e.g., image/jpeg for a photograph).

An example of this is a land parcel (land lot) as the feature (base table), and photographs of the location (house, commercial property, etc.) as the related media.

Note that the related table does not need to include additional columns, although additional columns are permitted in the related table definition, so they can be added if desired. The Related Tables Extension does not constrain or codify what the additional columns can be. Specific communities of interest may wish to provide usage profiles of the Media conformance class to meet specific operational or business needs. Clients that intend to display GeoPackages that make use of the Media conformance class of the Related Tables Extension may wish to provide additional attribute display on a "best efforts" basis (e.g., view with the column names as labels for the text and numeric row values).

For example, additional column content might include:

  • An indicator of the size of the media content (although this can be determined using the SQLite length() function)

  • A title or description of the content of the media BLOB

  • License information, usage restrictions, or security constraints

6.2.2. Simple Attributes

The Simple Attributes conformance class is used for related tables that include only "simple attributes" - those SQLite values that are part of the TEXT, INTEGER and REAL storage classes. The GPKG table type is attributes. This is intended to support data that would typically be represented in Comma Separated Value (CSV) or spreadsheet formats, such as reference tables or observations. The simple attributes related table is not permitted to contain BLOB data (such as multimedia content, or feature GEOMETRY - these are covered by other conformance classes).

Only two columns are required in the related attributes table - the primary key, and one other column (which can be of TEXT, INTEGER, REAL, or a type that maps to one of those storage classes). As for Media, the Simple Attributes related table does not need to include additional columns, although additional columns are permitted in the related table definition, so they can be added if desired. The Related Tables Extension does not constrain or codify what the additional columns can be. Specific communities of interest may wish to provide usage profiles of the Simple Attributes conformance class to meet specific operational or business needs. Clients that intend to display GeoPackages that make use of the Simple Attributes conformance class of the Related Tables Extension may wish to provide additional attribute display on a "best efforts" basis (e.g., view with the column names as labels for the text and numeric row values; or a spreadsheet-style table representation).

An example of this is a land parcel (land lot) as the feature (base table), and contact details for the managing agent as the related table. While this could be supported by embedding the contact details for each land parcel, this could be a lot of duplication and require update if a phone number or email address changes.

Note that the feature (base table) could link to many attribute table rows. An example of this would be for a set of valuations for the property, or records of property inspections or maintenance work conducted on the property.

6.2.3. Features

The Features conformance class is used for related tables that are GPKG 1.2 vector feature tables. The GPKG table type is features. This is intended to support defining relationships between feature types. No changes or constraints are made on the extant definition of the features tables.

An example of this is linking the location of a condominium (town house) or apartment with the locations of associated parking places or individual garden plots.

6.3. Usage scenario

A single GeoPackage could include each of these relationships. For example, an airport can be considered as a point location with some attributes, which would be represented in GeoPackage as a features table. Similarly, the runways may be considered as polygons with attributes, which would be represented in GeoPackage as a different features table. See Figure 3. The mapping between those feature tables can be represented using the Related Tables Extension, so that a graphical user interface could identify and select the runways for a particular airport, including associated attributes and metadata.

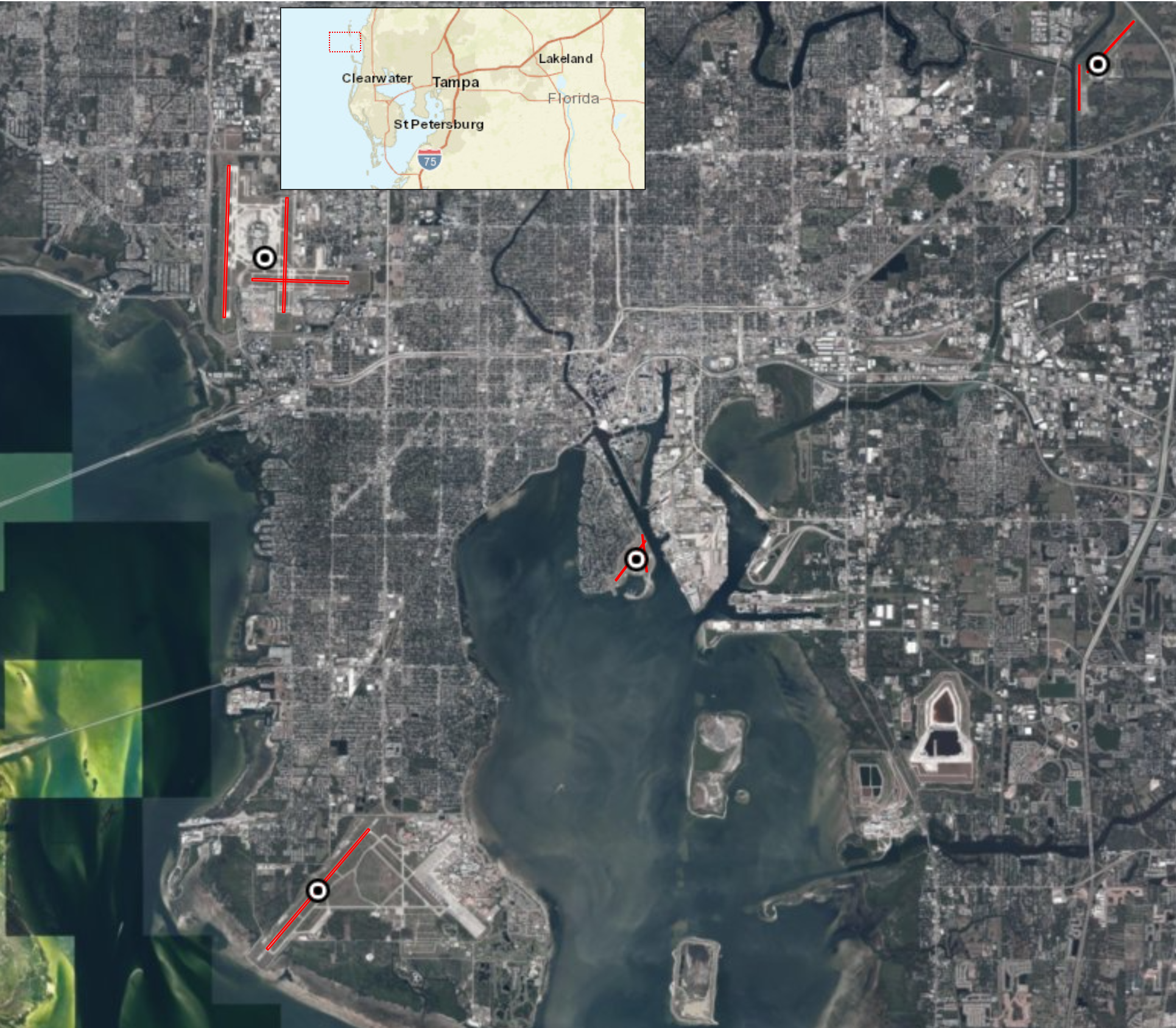

AirportsAndRunways
Figure 3. Airports and runways for Tampa area (from FAA data, AIRAC cycle 1802)

In addition to feature geometry, an airport may have associated documents, such as terminal procedures. These are typically provided as PDF documents containing a mix of text and diagrams, as shown in Figure 4. These could be common to a range of airports in a close area (which is the case for that Arrival procedure), specific to a particular airport, or they could be specific to a particular runway, as shown in Figure 5.

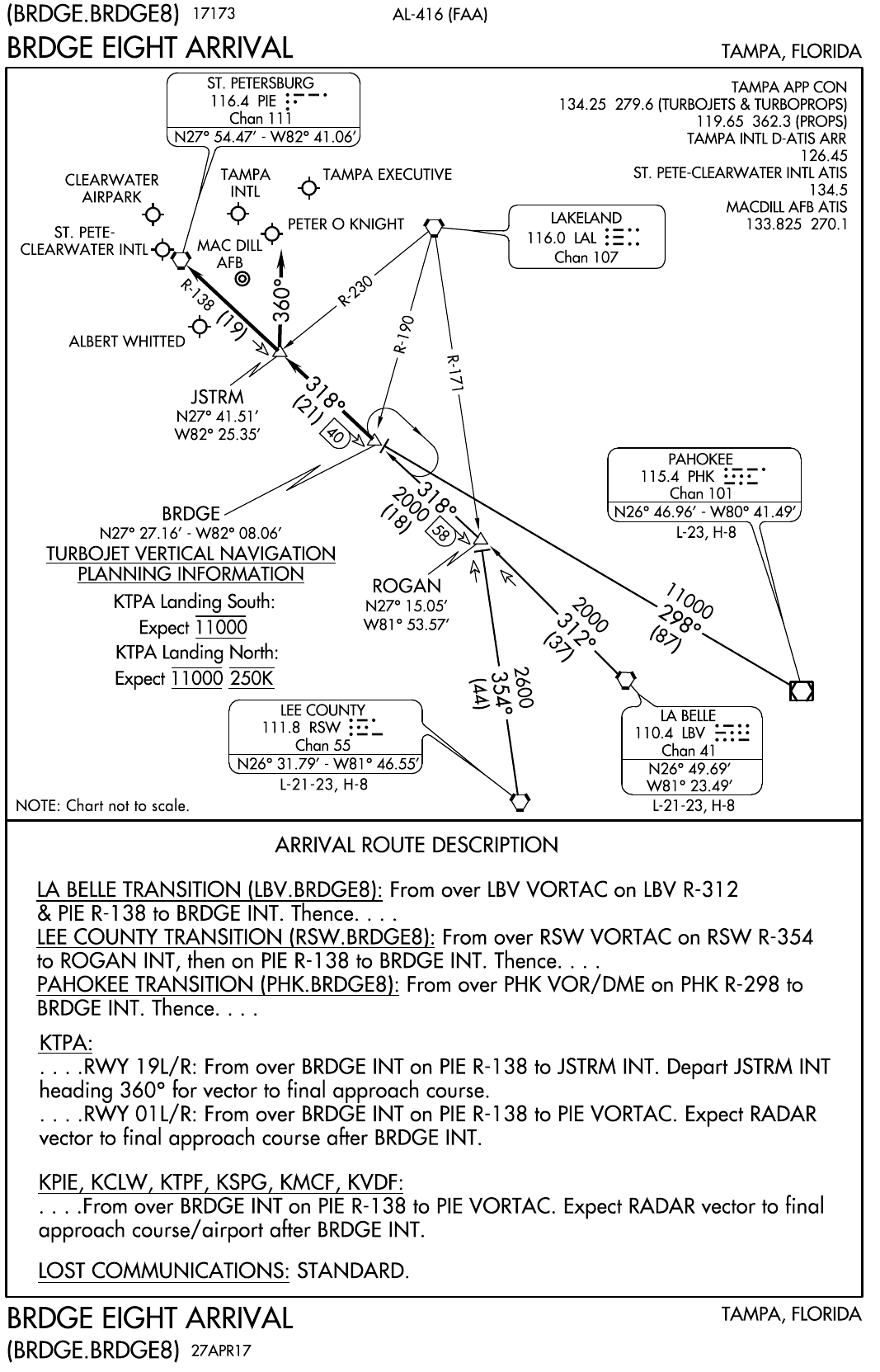

bridgearrival
Figure 4. Bridge Eight Arrival (from FAA data, AIRAC cycle 1802)

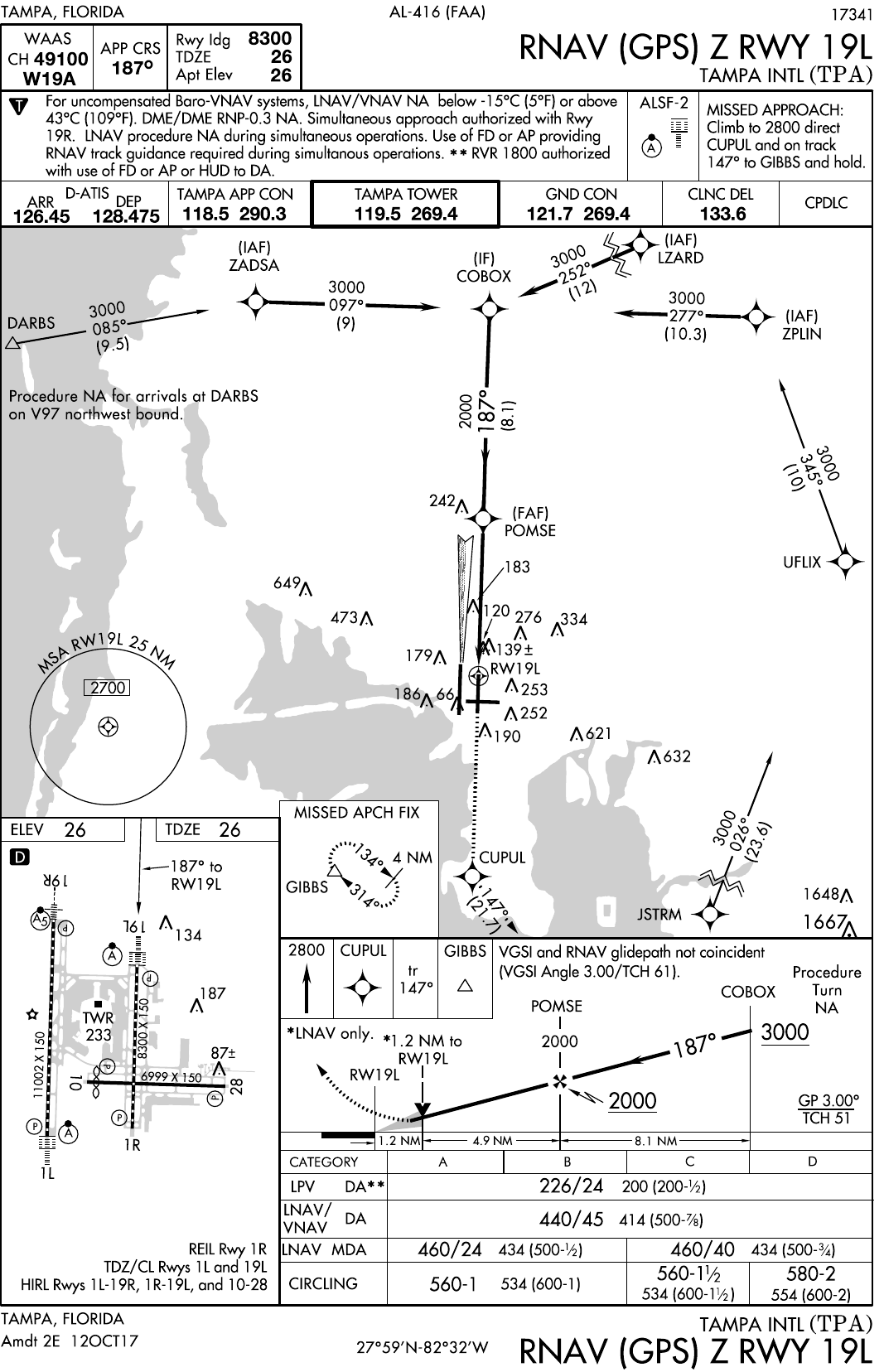

gpsapproach
Figure 5. Tampa International RWY 19L GPS Instrument Approach(from FAA data, AIRAC cycle 1802)

This information can be represented using the user defined media table, either by incorporating the original PDF as the content of the data BLOB, or by rendering it to an image format such as PNG and using that as the content of the data BLOB. Mapping tables can relate the feature tables (e.g., airport geometry as points and runways as polygons, as described above) to the media table.

Airports may also have associated attributes that are not geospatial or media, such as the communications frequencies that are required. There are often multiple frequencies, and they are often common to multiple airports in an area. The frequency information can be represented as an attributes table, with the mapping from airport to communication frequency through a simple attributes mapping. There could well be additional attribute information, such as a mapping from the terminal procedures media table to currency (validity dates, last change) or to the responsible information provider and associated contact details.

7. Requirements (Normative)

7.1. Common Requirements – Table Definitions

Requirements Class : Table Definitions

http://www.opengis.net/spec/gpkg-rt/1.0/table-defs

Target type

Token

Dependency

http://www.geopackage.org/spec120/#features

Dependency

http://www.geopackage.org/spec120/#tiles

Dependency

http://www.geopackage.org/spec120/#attributes

7.1.1. gpkg_extensions

Table Values

Requirement 1 – gpkg_extensions Row

/req/table-defs/extensions-ger

A GeoPackage that contains a row in the gpkg_extensions table for gpkgext_relations as described in Extensions Table Record SHALL comply with the Related Tables Extension as described by this document.

Requirement 2 – gpkgext_relations Row

/req/table-defs/extensions-gerr

A GeoPackage that contains a row in the gpkg_extensions table for gpkgext_relations SHALL contain at least one related table relationship.

Warning

The intent of this requirement is that a GeoPackage shall not declare the Related Tables Extension unless it is used within the GeoPackage. As a consequence, if all rows are removed from gpkgext_relations, that table must be dropped and all references to the extension must be removed from gpkg_extensions as well. However, because a related tables schema may be established without any data, empty user-defined mapping tables and/or related data tables are permitted.

Requirement 3 – gpkg_extensions User Defined Mapping Table Rows

/req/table-defs/extensions-udmt

A GeoPackage that complies with the Related Tables Extension SHALL contain rows in the gpkg_extensions table for each User Defined Mapping Table as described in Extensions Table Record.

Table 1. Extensions Table Record
table_name column_name extension_name definition scope

gpkgext_relations

null

related_tables

TBD

read-write

name of actual User Defined Mapping Table

null

related_tables

TBD

read-write

7.1.2. gpkgext_relations

Requirement 4 – gpkgext_relations Table

/req/table-defs/ger

A GeoPackage that complies with this extension SHALL contain a gpkgext_relations table as per Extended Relations Table Definition and Extended Relations Table Definition SQL (Normative).

Table Definition
Table 2. Extended Relations Table Definition
Column Name Column Type Column Description Null Default Key Unique

id

INTEGER

Autoincrement primary key

no

PK

yes

base_table_name

TEXT

Name of the table containing the base data (e.g., features) to relate

no

no

base_primary_column

TEXT

Name of the primary key column in base_table_name

no

id

no

related_table_name

TEXT

Name of the table containing the related content

no

no

related_primary_column

TEXT

Name of the primary key column in related_table_name

no

id

no

relation_name

TEXT

Name (profile) of the relationship

no

no

mapping_table_name

TEXT

Name of a mapping table

no

yes

Table Values

Requirement 5 – gpkgext_relations Base Table

/req/table-defs/ger-base

For each row in gpkgext_relations, there SHALL be a table or view of the name referenced in base_table_name and that table or view SHALL have an entry in gpkg_contents.

Note

See Example User Defined Features Table Definition SQL (Informative) for example SQL for creating a features table for use with this extension.

Requirement 6 – gpkgext_relations Related Table

/req/table-defs/ger_related

For each row in gpkgext_relations, there SHALL be a table or view of the name referenced in related_table_name and that table or view SHALL have an entry in gpkg_contents.

Requirement 7 – gpkgext_relations User Defined Mapping Table

/req/table-defs/ger_udmt

For each row in gpkgext_relations, the mapping_table_name column SHALL contain the name of a user-defined mapping table or view as described by User-Defined Mapping Tables.

Requirement 8 – gpkgext_relations Relation Name

/req/table-defs/ger_relname

Each relation_name column in a gpkgext_relations row SHALL either match a relation_name from the Requirements Classes for User-Defined Related Data Tables in this specification (e.g. media for [Media Requirement Class]), or be of the form x-<author>_<relation_name> where <author> indicates the person or organization that developed and maintains this set of User-Defined Related Tables.

7.1.3. User-Defined Mapping Tables

Table Definition

Requirement 9 – User Defined Mapping Table

/req/table-defs/udmt

A user-defined mapping table or view SHALL contain all of the columns described in User-Defined Mapping Table Definition.

Note

A user-defined mapping table MAY contain no rows. This is intended to support declaring a conceptual relationship where no instances of that relationship currently exist in the GeoPackage (e.g. no related data has been added, or all applicable data has been deleted).

Table 3. User-Defined Mapping Table Definition
Column Name Column Type Column Description Null Default Key Unique

base_id

INTEGER

The primary key value of the base data table

no

no

related_id

INTEGER

The primary key value of the related data table

no

no

Note

See Extended Relations Mapping Table SQL (Informative) for example SQL for defining a user-defined mapping table. A user-defined mapping table MAY also contain other columns not listed here.

Table Values

Requirement 10 – User Defined Mapping Table Base ID

/req/table-defs/udmt_base

For each row of a user-defined mapping table, the base_id column SHALL correlate to the primary key of the corresponding base table (as identified by the base_primary_column of the associated row in gpkgext_relations).

Requirement 11 – User Defined Mapping Table Related ID

/req/table-defs/udmt_related

For each row of a user-defined mapping table, the related_id column SHALL correlate to the primary key of the corresponding related data table (as identified by the related_primary_column of the associated row in gpkgext_relations).

Note

This specification makes no statement on the cardinality of a user-defined mapping table. It MAY contain no rows or have a one-to-many, many-to-one, or many-to-many relationship. While it is possible to enforce a one-to-many or many-to-one relationship by applying a UNIQUE constraint to the attributes_id or base_id respectively, this is NOT RECOMMENDED because the presence of these constraints is not exposed by SQLite in an easy-to-query manner.

There are no explicit requirements for a generic user-defined related data table. However, interoperability is improved if a specific requirements class is used. The following subsections describe three requirements classes.

7.2. Media Requirements Class

Requirements Class : Media

http://www.opengis.net/spec/gpkg-rt/1.0/media

Target type

Token

Dependency

www.opengis.net/spec/gpkg-rt/1.0/table-defs

This requirements class allows a GeoPackage producer or editor to relate features or attributes to multimedia files such as pictures and videos. For example, this could relate building features with pictures or videos taken of those areas.

7.2.1. User-Defined Media Tables

Table Definition

Requirement 12 – Media Relation Name

/req/media/udmt

A user-defined related data table or view SHALL be a user-defined media table or view if the row in gpkgext_relations with a corresponding related_table_name has a relation_name of "media".

Requirement 13 – Media Table Definition

/req/media/table_def

A user-defined media table or view SHALL contain all of the columns described in User-Defined Media Table Definition.

Table 4. User-Defined Media Table Definition
Column Name Column Type Column Description Null Key

any

INTEGER

Autoincrement primary key

no

PK

data

BLOB

Multimedia content

no

content_type

TEXT

Mime-type of data

no

Note

See Example User Defined Media Table Definition SQL (Informative) for example SQL for defining a user-defined media table. A user-defined media table MAY also contain other columns not listed here. Refer to the Dublin Core profile (Informative) for a set of additional columns that may be provided.

7.3. Simple Attributes Requirements Class

Requirements Class : Simple Attributes

http://www.opengis.net/spec/gpkg-rt/1.0/simpleattr

Target type

Token

Dependency

www.opengis.net/spec/gpkg-rt/1.0/table-defs

This requirements class allows a GeoPackage producer or editor to relate sets of tabular text or numeric data. For example, this could relate land parcels with statistical information that is collected over different boundaries, or at different times.

7.3.1. User-Defined Simple Attribute Tables

Table Definition

Requirement 14 – Simple Attributes Relation Name

/req/simpleattr/udat

A user-defined related data table or view SHALL be a user-defined simple attribute table or view if the row in gpkgext_relations with a corresponding related_table_name has a relation_name of "simple_attributes".

Requirement 15 – Simple Attributes Table Definition

/req/simpleattr/table_def

A user-defined simple attribute table or view SHALL contain the primary key column and at least one other column as defined in User-Defined Simple Attributes Table Definition. A user-defined simple attribute table SHALL only contain data belonging to the TEXT, INTEGER, or REAL storage classes and SHALL NOT contain NULL or BLOB storage classes (e.g., GEOMETRY).

Table 5. User-Defined Simple Attributes Table Definition
Column Name Column Type Column Description Null Key

any

INTEGER

Autoincrement primary key

no

PK

any

TEXT

Text attribute content

any

any

INTEGER

Integer attribute content

any

any

REAL

Floating point number attribute content

any

Note

See Example User Defined Simple Attribute Table Definition SQL (Informative) for example SQL for defining a user-defined simple attributes table.

7.4. Related Features Requirements Class

Requirements Class : Related Features

http://www.opengis.net/spec/gpkg-rt/1.0/relatedfeat

Target type

Token

Dependency

www.opengis.net/spec/gpkg-rt/1.0/table-defs

This requirements class allows a GeoPackage producer or editor to link features with other features. For example, this could link road features with related pylon features.

Table Definition

Requirement 16 – Features Relation Name

/req/relatedfeat/udat

A user-defined related data table or view SHALL be a user-defined related features table or view if the row in gpkgext_relations with a corresponding related_table_name has a relation_name of "features".

Requirement 17 – Features Table Definition

/req/relatedfeat/table_def

A user-defined related features table or view SHALL be a vector feature user data table as defined in the OGC® GeoPackage Encoding Standard.

8. Media Types for any data encoding(s)

This standard provides an extension to GeoPackage and does not affect the GeoPackage data encoding.

Annex A: Conformance Class Abstract Test Suite (Normative)

Note
Ensure that there is a conformance class for each requirements class and a test for each requirement (identified by requirement name and number)

A.1. Common Requirements

A.1.1. gpkg_extensions Row

Test id:

/conf/table-defs/applicability

Requirement:

/req/table-defs/extensions-ger

Test purpose:

Verify whether the Related Tables Extension is applicable.

Test method:

SELECT COUNT(*) FROM gpkg_extensions WHERE extension_name IN ('related_tables', 'gpkg_related_tables')

Extension not in use if count is empty

Test id:

/conf/table-defs/extensions-ger

Requirement:

/req/table-defs/extensions-ger

Test purpose:

Verify that the gpkg_extensions table contains the required gpkgext_relations table.

Test method:

SELECT * FROM gpkg_extensions WHERE table_name = 'gpkgext_relations'

Fail if number of rows returned is not 1.

Pass if results match required content from Extensions Table Record, else Fail.

A.1.2. gpkgext_relations Row

Test id:

/conf/table-defs/extensions-gerr

Requirement:

/req/table-defs/extensions-gerr

Test purpose:

Verify that the gpkg_extensions table contains at least one user defined mapping table.

Test method:

1. SELECT table_name FROM gpkg_extensions WHERE (extension_name IN ('related_tables', 'gpkg_related_tables') AND table_name != 'gpkgext_relations')

2. Fail if number of rows returned is 0.

3. For each table_name row returned in Step 1:

- SELECT tbl_name FROM sqlite_master WHERE tbl_name = '{table_name}'

- Fail if no rows returned.

4. Pass if no fails.

A.1.3. gpkg_extensions User Defined Mapping Table Rows

Test id:

/conf/table-defs/extensions-udmt

Requirement:

/req/table-defs/extensions-udmt

Test purpose:

Verify that the gpkg_extensions table contains the required user defined mapping table contents

Test method:

1. SELECT column_name, definition, scope FROM gpkg_extensions WHERE (extension_name IN ('related_tables', 'gpkg_related_tables') AND table_name != 'gpkgext_relations')

2. Fail if number of rows returned is 0.

3. For each row returned in Step 1, fail if column_name is not null, definition is not "TBD" or scope is not "read-write".

4. Pass if no fails.

A.1.4. gpkgext_relations Table

Test id:

/conf/table-defs/ger

Requirement:

/req/table-defs/ger

Test purpose:

Verify that the gpkgext_relations table has the required table definition.

Test method:

1. PRAGMA table_info(gpkgext_relations)

2. Fail if returns an empty result set.

3. Pass if the column names, types, nullability, default values, primary key, and unique key constraints match all of those in the contents of Extended Relations Table Definition. Column order, check constraint and trigger definitions, and other column definitions in the returned sql are irrelevant.

4. Fail otherwise.

A.1.5. gpkgext_relations Base Table

Test id:

/conf/table-defs/ger-base

Requirement:

/req/table-defs/ger-base

Test purpose:

Verify that the base tables listed in gpkgext_relations table are in the GeoPackage database

Test method:

1. SELECT base_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each base_table_name row returned in Step 1:

- SELECT tbl_name FROM sqlite_master WHERE tbl_name = '{base_table_name}'

- Fail if no rows returned.

4. Pass if no fails.

Test id:

/conf/table-defs/ger-base-contents

Requirement:

/req/table-defs/ger-base

Test purpose:

Verify that the base tables listed in gpkgext_relations table are in the GeoPackage contents table

Test method:

1. SELECT base_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each base_table_name row returned in Step 1:

- SELECT table_name FROM gpkg_contents WHERE table_name = '{base_table_name}'

- Fail if no rows returned.

4. Pass if no fails.

Test id:

/conf/table-defs/ger-related

Requirement:

/req/table-defs/ger_related

Test purpose:

Verify that the related tables listed in gpkgext_relations table are in the GeoPackage database

Test method:

1. SELECT related_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each related_table_name row returned in Step 1:

- SELECT tbl_name FROM sqlite_master WHERE tbl_name = '{related_table_name}'

- Fail if no rows returned.

4. Pass if no fails.

Test id:

/conf/table-defs/ger-related-contents

Requirement:

/req/table-defs/ger_related

Test purpose:

Verify that the related tables listed in gpkgext_relations table are in the GeoPackage contents table

Test method:

1. SELECT related_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each related_table_name row returned in Step 1:

- SELECT table_name FROM gpkg_contents WHERE table_name = '{related_table_name}'

- Fail if no rows returned.

4. Pass if no fails.

A.1.7. gpkgext_relations User Defined Mapping Table

Test id:

/conf/table-defs/ger-udmt

Requirement:

/req/table-defs/ger_udmt

Test purpose:

Verify that the mapping tables listed in gpkgext_relations table are in the GeoPackage database

Test method:

1. SELECT mapping_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each mapping_table_name row returned in Step 1:

- SELECT tbl_name FROM sqlite_master WHERE tbl_name = '{mapping_table_name}'

- Fail if no rows returned.

4. Pass if no fails.

A.1.8. gpkgext_relations Relation Name

Test id:

/conf/table-defs/ger-relname

Requirement:

/req/table-defs/ger_relname

Test purpose:

Verify that the relation_name entries listed in gpkgext_relations table are valid.

Test method:

1. SELECT base_table_name, relation_name FROM gpkgext_relations WHERE (relation_name NOT IN ('features', 'simple_attributes', 'media') AND relation_name NOT LIKE 'x-%\_%' ESCAPE '\')

2. Fail if returns any rows

A.1.9. User Defined Mapping Table

Test id:

/conf/table-defs/udmt

Requirement:

/req/table-defs/udmt

Test purpose:

Verify that the mapping tables listed in gpkgext_relations table have the correct structure

Test method:

1. SELECT mapping_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each mapping_table_name row returned in Step 1:

- PRAGMA table_info({mapping_table_name})

- Fail if returns an empty result set.

- Fail if the column names, types, nullability, default values, primary key, and unique key constraints do match all of those in the contents of User-Defined Mapping Table Definition. Additional columns, column order, check constraint and trigger definitions, and other column definitions in the returned sql are irrelevant.

4. Pass if no fails.

A.1.10. User Defined Mapping Table Base ID

Test id:

/conf/table-defs/udmt-base

Requirement:

/req/table-defs/udmt_base

Test purpose:

Verify that the contents of mapping tables listed in gpkgext_relations table correlate to base table rows

Test method:

1. SELECT base_table_name, base_primary_column, mapping_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each row returned in Step 1, fail if any base_id value in {mapping_table_name} does not match an entry in the {base_primary_column} column of the {base_table_name} table.

4. Pass if no fails.

Test id:

/conf/table-defs/udmt-related

Requirement:

/req/table-defs/udmt_related

Test purpose:

Verify that the contents of mapping tables listed in gpkgext_relations table correlate to related table rows

Test method:

1. SELECT related_table_name, related_primary_column, mapping_table_name FROM gpkgext_relations

2. Fail if returns an empty result set.

3. For each row returned in Step 1, fail if any related_id value in {mapping_table_name} does not match an entry in the {related_primary_column} column of the {related_table_name} table.

4. Pass if no fails.

A.1.12. Media Relation Name

Test id:

/conf/media/udmt

Requirement:

/req/media/udmt

Test purpose:

Verify whether the requirements class applies for user-defined media tables

Test method:

SELECT COUNT(*) FROM gpkgext_relations WHERE relation_name = 'media'

Requirement class is not in use if count is zero

A.1.13. Media Table Definition

Test id:

/conf/media/table_def

Requirement:

/req/media/table_def

Test purpose:

Verify that the user-defined media tables have the correct structure

Test method:

1. SELECT related_table_name FROM gpkgext_relations WHERE relation_name = 'media'

2. For each related_table_name row returned in Step 1:

- PRAGMA table_info({related_table_name})

- Fail if returns an empty result set.

- Fail if the column names, types, nullability, default values, primary key, and unique key constraints do match all of those in the contents of User-Defined Media Table Definition. Additional columns, column order, check constraints, trigger definitions, and other column definitions in the returned sql are irrelevant.

3. Pass if no fails.

A.1.14. Simple Attributes Relation Name

Test id:

/conf/simpleattr/udat

Requirement:

/req/simpleattr/udat

Test purpose:

Verify whether the requirements class applies for user-defined simple attributes tables

Test method:

SELECT COUNT(*) FROM gpkgext_relations WHERE relation_name = 'simple_attributes'

Requirement class is not in use if count is zero

A.1.15. Simple Attributes Table Definition

Test id:

/conf/simpleattr/table_def

Requirement:

/req/simpleattr/table_def

Test purpose:

Verify that the user-defined simple attribute tables have the correct structure

Test method:

1. SELECT related_table_name FROM gpkgext_relations WHERE relation_name = 'simple_attributes'

2. For each related_table_name row returned in Step 1:

- PRAGMA table_info({related_table_name})

- Fail if returns an empty result set.

- Fail if the column names, types, nullability, default values, primary key, and unique key constraints do match all of those in the contents of User-Defined Simple Attributes Table Definition.

- Fail if Column Type includes storage classes other than TEXT, INTEGER, or REAL.

3. Pass if no fails.

A.1.16. Features Relation Name

Test id:

/conf/relatedfeat/udat

Requirement:

/req/relatedfeat/udat

Test purpose:

Verify whether the requirements class applies for user-defined features tables

Test method:

SELECT COUNT(*) FROM gpkgext_relations WHERE relation_name = 'features'

Requirement class is not in use if count is zero

A.1.17. Features Table Definition

Test id:

/conf/relatedfeat/table_def

Requirement:

/req/relatedfeat/table_def

Test purpose:

Verify that the user-defined related features tables have the correct structure

Test method:

1. SELECT related_table_name FROM gpkgext_relations WHERE relation_name = 'features'

2. For each related_table_name row returned in Step 1:

- PRAGMA table_info({related_table_name})

- Fail if returns an empty result set.

- Fail if the column names, types, nullability, default values, primary key, and unique key constraints do match all of those in the contents of [http://www.geopackage.org/spec/#feature_user_tables].

3. Pass if no fails.

Annex B: Example (Informative)

This example illustrates support for many-to-many relationships but the concept may be used in a degenerative way to support one-to-many or many-to-one relationships. The content of the gpkgext_relations includes a features_to_media table that relates the features table values and media table values using their respective id columns.

In this example, there are four features (ID 1, 2, 3 and 4) and three PNG media items (ID 17, 18, and 19). Using the features_to_media table,

  • feature 1 relates to media 17 and 18

  • feature 2 relates to media 18

  • feature 3 relates to media 18

  • feature 4 relates to media 17 and 19

Table 6. gpkgext_relations table values
base_table_name base_column related_table_name related_column relation_name mapping_table_name

features

id

media

id

media

features_to_media

The following SQL query will reveal this information:

select base_table_name,
    base_primary_column,
    related_table_name,
    related_primary_column,
    mapping_table_name
from gpkgext_relations;
Table 7. features table values
id geom

1

<BLOB>

2

<BLOB>

3

<BLOB>

4

<BLOB>

Table 8. media table values
id data content_type

17

<BLOB>

image/png

18

<BLOB>

image/png

19

<BLOB>

image/png

Table 9. features_to_media table
base_id related_id

4

17

4

19

3

18

2

18

1

18

1

17

The features_to_media table table relates the id columns between the features table and the media table.

The following SQL query will reveal this information:

select features.id, features_to_media.related_id
    from features, features_to_media
where features.id=features_to_media.base_id;

Annex C: Dublin Core Profile (Informative)

The Related Tables Extension intends to be flexible in which columns are required. The goal is to support a wide variety of input data. However, with loose control over the columns it can be difficult for users to understand why a specific relationship exists. This annex presents a recommendation that is designed to improve interoperability while maintaining as flexible a structure as possible. It is based on Dublin Core elements.

Columns for the following Dublin Core elements are RECOMMENDED to be present in a mapping table or a related data table. Clients SHOULD look for these elements and attempt to present them to the user where possible.

  • date

  • description

  • source

  • title

Some columns use different names from Dublin Core elements, as shown in Column Name / Dublin Core Synonyms.

Table 10. Column Name / Dublin Core Synonyms
Related Table Column Name Synonymous Dublin Core Element

id

identifier

content_type

format

Table 11. Example User Defined Media Table Definition SQL - Dublin Core (Informative)
CREATE TABLE 'sample_media_with_metadata' (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  data BLOB NOT NULL,
  content_type TEXT NOT NULL,
  title TEXT NOT NULL,
  description TEXT NOT NULL,
  date INTEGER NOT NULL,
  source TEXT NOT NULL)
Note
There are three ways to store dates in SQLite (and in GeoPackage) - as TEXT (ISO-8601), as REAL (days relative to Gregorian calendar start) and INTEGER (seconds relative to Unix epoch). See SQLite documentation for more information including conversion between forms.

Annex D: Table Definition SQL

Table 12. Extended Relations Table Definition SQL (Normative)
CREATE TABLE 'gpkgext_relations' (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  base_table_name TEXT NOT NULL,
  base_primary_column TEXT NOT NULL DEFAULT 'id',
  related_table_name TEXT NOT NULL,
  related_primary_column TEXT NOT NULL DEFAULT 'id',
  relation_name TEXT NOT NULL,
  mapping_table_name TEXT NOT NULL UNIQUE
 );
Table 13. Extended Relations Mapping Table SQL (Informative)
CREATE TABLE 'sample_mapping_table' (
  base_id INTEGER NOT NULL,
  related_id INTEGER NOT NULL
 );
Table 14. Example User Defined Features Table Definition SQL (Informative)
CREATE TABLE 'sample_feature_table' (
  id INTEGER PRIMARY KEY AUTOINCREMENT NOT NULL,
  geometry GEOMETRY,
  text_attribute TEXT,
  real_attribute REAL,
  boolean_attribute BOOLEAN)

This table is a modified version of the informative example in the core document. The raster_or_photo column is removed with the intent of making the binary data available as per this extension.

Table 15. Example User Defined Media Table Definition SQL (Informative)
CREATE TABLE 'sample_media' (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  data BLOB NOT NULL,
  content_type TEXT NOT NULL)
Table 16. Example User Defined Simple Attribute Table Definition SQL (Informative)
CREATE TABLE 'sample_attributes' (
  id INTEGER PRIMARY KEY AUTOINCREMENT,
  label TEXT NOT NULL,
  description TEXT NOT NULL,
  arisings INTEGER NOT NULL)

Annex E: Revision History

Date Release Editor Primary clauses modified Description

2017-12

0.1

J. Yutzler

all

initial version

2018-06

0.2

J. Yutzler

all

post-IE

Annex F: Bibliography


1. www.opengeospatial.org/cite
